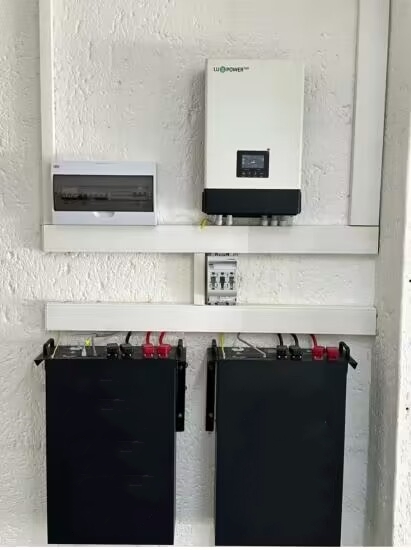

LiFePO4 Battery Pack 51.2V 200Ah 10KWH Rack Mounted Energy Storage Battery for UPS

Product Categories

G-TECH POWER GROUP

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LiFePO4 Battery Pack 512V 200Ah 10KWH Rack Mounted Energy Storage Battery for UPS
Brand: G Tech
Price: 1000 USD

Brand Name : G Tech

Model Number : LR-10K

Certification : UN38.3 MSDS

Place of Origin : China

MOQ : 100

Price : USD1000-USD1200

Payment Terms : T/T

Supply Ability : 100000 pieces per month

Delivery Time : 5-7 work days

Packaging Details : carton, wooden

Material : LiFePO4

Voltage : 51.2V

Capacity : 200Ah

Energy : 10KWH

Contact Now

Product Advantages

For solar energy storage

No.	Item				Parameter		Remark
1	Model				LR-10K		Prismatic battery-100Ah
2	Standard capacity ( 0.2C₅ A )				200Ah
3	Minimum Capacity ( 0.2C₅ A )				198Ah
4	Energy				10 KWh
5	Rated voltage				51.2V
6	Maximum charging voltage				58.4V
7	Discharge cut-off voltage				40V
8	Standard charge and discharge current				40A
8	Maximum charging current				200A		See charging table
9	Maximum continuous discharge current				200A		See discharge table
10	Installation				rack-mounted
11	Communication				CAN/RS485
12	Battery protection				Over charge/over discharge/over temperature/over current/ short
13	Level of protection				IP54
14	Weight(Approx including case)				≈ 46.6 kg
15	Internal resistance (Max, at 1000Hz. )				≤ 15 mΩ		Includes test fixture internal resistance
16	Support inverter interaction protocol				RS485		1. Pylontech; 2. Growatt; 3. Voltronics; 4. Lux Power; 5. Deye; 6. IVT; 7. SRNE
16	Support inverter interaction protocol				CAN		1. Pylontech; 2. Victron; 3. Goodwe; 4. Growatt; 5. Lux Power; 6. Deye; 7. Sofar Solar; 8. Solis; 9. SMA; 10. Others .
17	Cycle life				SOC≥80% initial capacity @ room temperature ≥ 2500 cycles 0.5C charge 0.5C discharge DOD80%
18	Delivery voltage				≥ 51.2 V
19	Charging method (CC/CV)	standard		CC	20A	58.4V cutoff	with constant current and voltage of 20A to 58.4 V, then switch to constant voltage charging at 58.4 V until the charging current is less than or equal to 0.05C.
19	Charging method (CC/CV)	standard		CV	58.4V	5A cutoff
20	Operating temperature		Charge			0 ℃～ 65 ℃
			Discharge			-20 ℃～ 65 ℃
			Storage			-20 ℃～ 45 ℃
